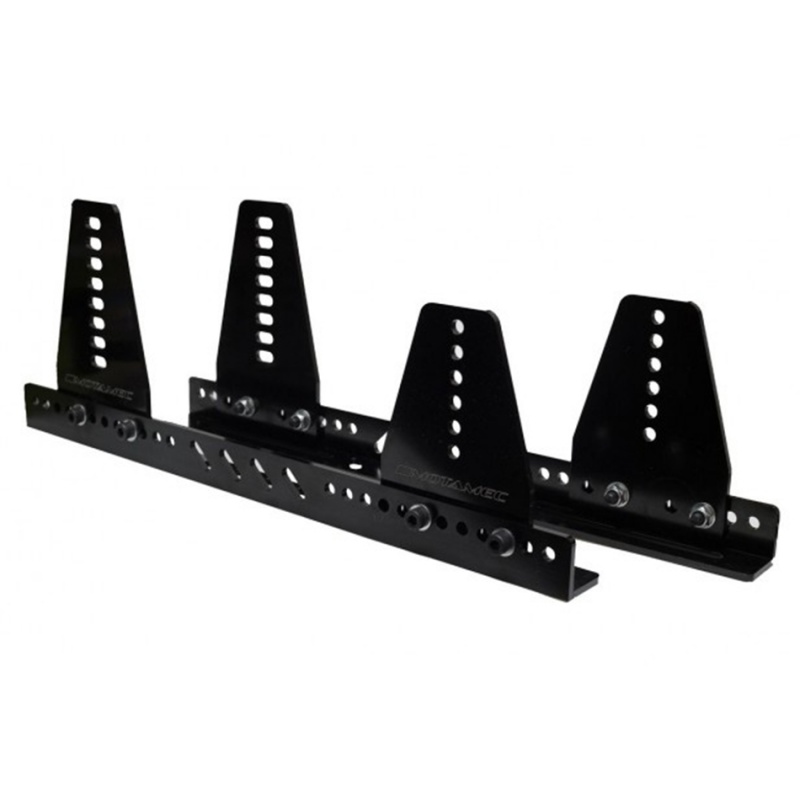

Motamec Alloy Side Seat Mounts 6 Piece Mounting Brackets

Motamec Alloy Side Seat Mounts 6 Piece Mounting Brackets
  Zoom
Price:  £36.95(Exc. 20% VAT)(£44.34 Inc. VAT)
+

Part Number:  MT-SM6P-BK

Motamec


  • Slotted adjustment lower bracket, for fine seat adjustment
  • Black anodized finish
  • Sold in pairs (one seat kit)
  • High tensile socket cap bolts, nuts and washers included

Dimensions are as follows:

Length 515mm

Maximum distance of mounting to seat rails: 460mm

Minimum distance to mounting to seat rails: 150mm



Centre to centre measurements of side mounting bracket holes.

Maximum: 485mm

Minimum: 154mm



Uprights:



The smaller with round holes:

Overall height: 150mm

Centre to centre mounting holes height: Max 120mm / Min 45mm



Larger with elongated holes:

Overall height: 185mm

Centre to centre mounting holes height: Max 150mm / Min 45mm



Overall weight  1.9Kg
