AIT M14 x 1.50 Porsche Wheel Stud 100mm Long

Zoom

Price: £14.04(Exc. 20% VAT)(£16.85 Inc. VAT)

–+

Part Number: AIT-100G
Spline Diameter 14.8mm
Thread Size M14 x 1.5
Stud Length 100mm

Product Details
Size Chart
Product Reviews
0% FINANCE OPTION

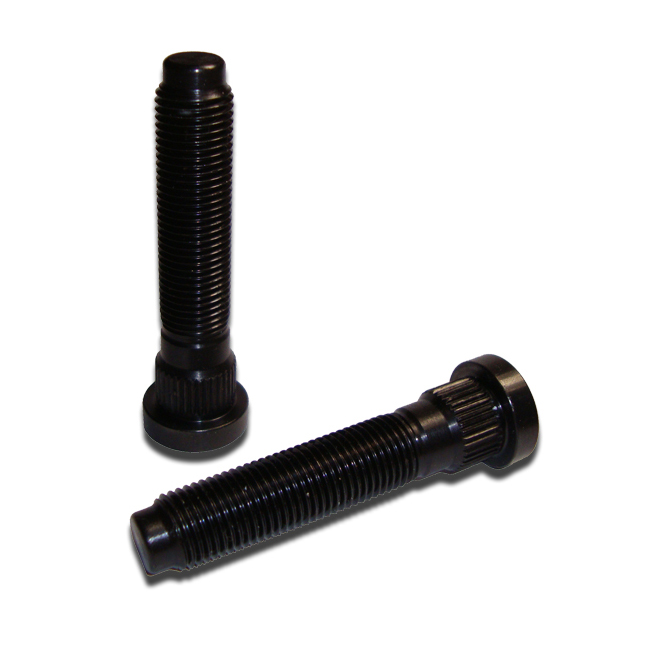

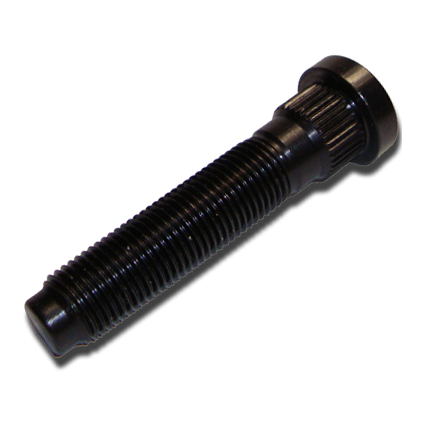

AIT Porsche competition wheel studs. Professional motorsport wheel studs with an M14 x 1.50 thread, an overall length of 100mm and a 14.8mm splined section. Manufactured from high grade high tensile steel with rolled threads for ultimate strength. Finished with a tough blackened treatment, you won't find a better quality product, used by many Works teams Worldwide.

Priced Each

To complete the ultimate professional installation, AI Tech recommend the use of their coppered or aluminium wheel nuts with these studs, this will ensure you the very best set up for strength, longevity and reliability.

Conversion to longer studs for use with wheel spacers
Professional quality rolled steel threads for motorsport use
Easy to install for an ultimate strength solution

Part Number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm/")	G (mm)
AIT-68C	68	4	14	50	17	12 x 1.50	12.8
AIT-74C	74	4	14	56	17	12 x 1.50	12.8
AIT-82C	82	4	14	64	17	12 x 1.50	12.8
AIT-86C	86	4	14	68	17	*12 x 1.50*	12.8
AIT-100C	100	4	14	82	17	12 x 1.50	12.8
AIT-102C	102	4	14	84	17	*12 x 1.50*	12.8
AIT-65CH	65	4	15	45	20	1/2" UNF	15.7
AIT-68CH	68	4	7	57	20	12 x 1.50	14.9
AIT-75G	75	4	11	59.5	20	14 x 1.50	14.3
AIT-81G	81	4	11	65.5	20	14 x 1.50	14.3
AIT-100G	100	5	13	82	20	14 x 1.50	14.8
*AIT-102G*	*102*	5	13	84	20	*14 x 1.50*	*14.8*
AIT-64HY	64	4	10	50	17	12 x 1.50	14.4
AIT-68H	68	5	11	52	19	12 x 1.50	12.3
AIT-74H	74	5	11	58	19	12 x 1.50	12.3
AIT-61M	61	4	8	42	20	12 x 1.50	14.7
AIT-67M	67	4	8	48	20	12 x 1.25	14.7
AIT-65M	65	4	11	50	17	12 x 1.50	13
AIT-71M	71	4	11	56	17	12 x 1.50	13
AIT-67MIT	67	3	7	57	18	12 x 1.50	14.2
AIT-73MIT	73	3	7	63	18	12 x 1.50	14.2
AIT-62N	62	5	7	50	20	12 x 1.25	14.2
AIT-64N	64	4	10	50	19	12 x 1.25	12.8
AIT-60R	60	4	11	45	18	12 x 1.50	12.3
AIT-66S	66	5	10	51	19	12 x 1.25	14.2
AIT-74S	74	5	10	0	19	12 x 1.25	14.2
AIT-68STR	68	9	15	51	24	14 x 1.50	16.9
AIT-74STR	74	9	15	57	24	14 x 1.50	16.9
AIT-73T	73	5	9	59	18	12 x 1.50	14.3
AIT-78T	78	5	9	64	18	12 x 1.50	14.3
AIT-69V	69	4	10	55	18	12 x 1.50	12.4
AIT-70V	70	5	17	48	21	12 x 1.50	16.3
AIT-76V	76	5	17	54	21	12 x 1.50	16.3
AIT-72J	72	5	10	57	18	1/2" UNF	13.7
AIT-59D	59	3	10	46	19	12 x 1.25	12.4
AIT-65D	65	3	10	52	19	12 x 1.25	12.4
AIT-70AR	70	5	10	55	20	12 x 1.50	13.8
AIT-74V	74	4	13	57	18	12 x 1.50	13.5
AIT-80V	80	4	13	63	18	12 x 1.50	13.5
AIT-81AR	81	5	19	57	22x19	12 x 1.50	12
AIT-84J	84	5	7	72	17	1/2" UNF	13.4
AIT-55F	55	5	15	35	20	14 x 1.50	14.9
AIT-74NSR	74	6	14	54	24	5/8"	17.5
AIT-108NSR	108	6	14	88	24	5/8"	17.5
AIT-110NSR	110	6	14	90	24	5/8"	17.5

NEW Sizes/Part Numbers in Bold Italic and being phased in during 2017 - (Dimensions for superseded studs may differ slightly)
