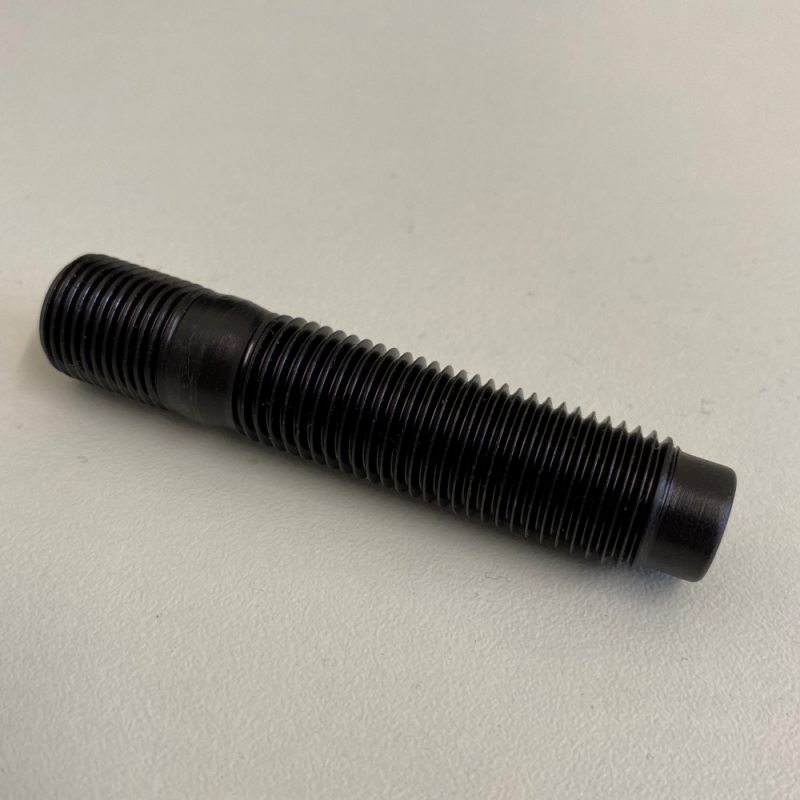

AIT M12 x 1.50 Mazda Wheel Stud 71mm Long

AIT M12 x 1.50 Mazda Wheel Stud 71mm Long
  Zoom
Price:  £9.39(Exc. 20% VAT)(£11.27 Inc. VAT)
+

Part Number:  AIT-71M
Spline Diameter  13mm
Thread Size  M12 x 1.5
Stud Length  71mm

AI Tech


AIT Mazda competition wheel studs, with an M12 x 1.50 pitch thread, an overall length of 71mm and a splined section with a diameter of 13mm. Professional motorsport wheel studs, manufactured from high grade high tensile steel with rolled threads for ultimate strength. Finished with a tough blackened treatment, you won't find a better quality product, used by many Works teams Worldwide. (Replaces AIT-65M). Priced Each

To complete the ultimate professional installation, AI Tech recommend the use of their coppered nuts with these studs, this will ensure you the very best set up for strength, longevity and reliability.

Please click on the 'Size Chart' tab above to view the dimensions for this conversion stud



Part Number A (mm) B (mm) C (mm) D (mm) E (mm) F (mm/") G (mm)
AIT-68C 68 4 14 50 17 12 x 1.50 12.8
AIT-74C 74 4 14 56 17 12 x 1.50 12.8
AIT-82C 82 4 14 64 17 12 x 1.50 12.8
AIT-86C 86 4 14 68 17 12 x 1.50 12.8
AIT-100C 100 4 14 82 17 12 x 1.50 12.8
AIT-102C 102 4 14 84 17 12 x 1.50 12.8
AIT-65CH 65 4 15 45 20 1/2" UNF 15.7
AIT-68CH 68 4 7 57 20 12 x 1.50 14.9
AIT-75G 75 4 11 59.5 20 14 x 1.50 14.3
AIT-81G 81 4 11 65.5 20 14 x 1.50 14.3
AIT-100G 100 5 13 82 20 14 x 1.50 14.8
AIT-102G 102 5 13 84 20 14 x 1.50 14.8
AIT-64HY 64 4 10 50 17 12 x 1.50 14.4
AIT-68H 68      5 11 52 19 12 x 1.50 12.3
AIT-74H 74 5 11 58 19 12 x 1.50 12.3
AIT-61M 61 4 8 42 20 12 x 1.50 14.7
AIT-67M 67 4 8 48 20 12 x 1.25 14.7
AIT-65M 65 4 11 50 17 12 x 1.50 13
AIT-71M 71 4 11 56 17 12 x 1.50 13
AIT-67MIT 67 3 7 57 18 12 x 1.50 14.2
AIT-73MIT 73 3 7 63 18 12 x 1.50 14.2
AIT-62N 62 5 7 50 20 12 x 1.25 14.2
AIT-64N 64 4 10 50 19 12 x 1.25 12.8
AIT-60R 60 4 11 45 18 12 x 1.50 12.3
AIT-66S 66 5 10 51 19 12 x 1.25 14.2
AIT-74S 74 5 10 0 19 12 x 1.25 14.2
AIT-68STR 68 9 15 51 24 14 x 1.50 16.9
AIT-74STR 74 9 15 57 24 14 x 1.50 16.9
AIT-73T 73 5 9 59 18 12 x 1.50 14.3
AIT-78T 78 5 9 64 18 12 x 1.50 14.3
AIT-69V 69 4 10 55 18 12 x 1.50 12.4
AIT-70V 70 5 17 48 21 12 x 1.50 16.3
AIT-76V 76 5 17 54 21 12 x 1.50 16.3
AIT-72J 72 5 10 57 18 1/2" UNF 13.7
AIT-59D 59 3 10 46 19 12 x 1.25 12.4
AIT-65D 65 3 10 52 19 12 x 1.25 12.4
AIT-70AR 70 5 10 55 20 12 x 1.50 13.8
AIT-74V 74 4 13 57 18 12 x 1.50 13.5
AIT-80V 80 4 13 63 18 12 x 1.50 13.5
AIT-81AR 81 5 19 57 22x19 12 x 1.50 12
AIT-84J 84 5 7 72 17 1/2" UNF 13.4
AIT-55F 55 5 15 35 20 14 x 1.50 14.9
AIT-74NSR 74 6 14 54 24 5/8" 17.5
AIT-108NSR 108 6 14 88 24 5/8" 17.5
AIT-110NSR 110 6 14 90 24 5/8" 17.5

NEW Sizes/Part Numbers in Bold Italic and being phased in during 2017 - (Dimensions for superseded studs may differ slightly)
