Part Number: CP4136-48G4

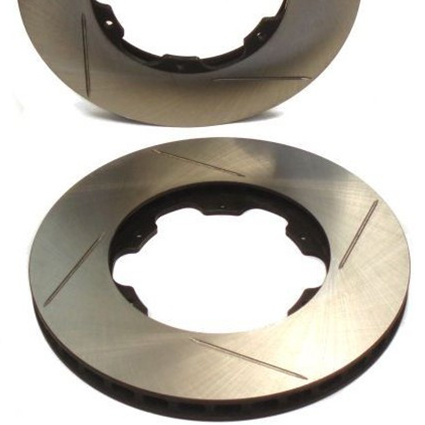

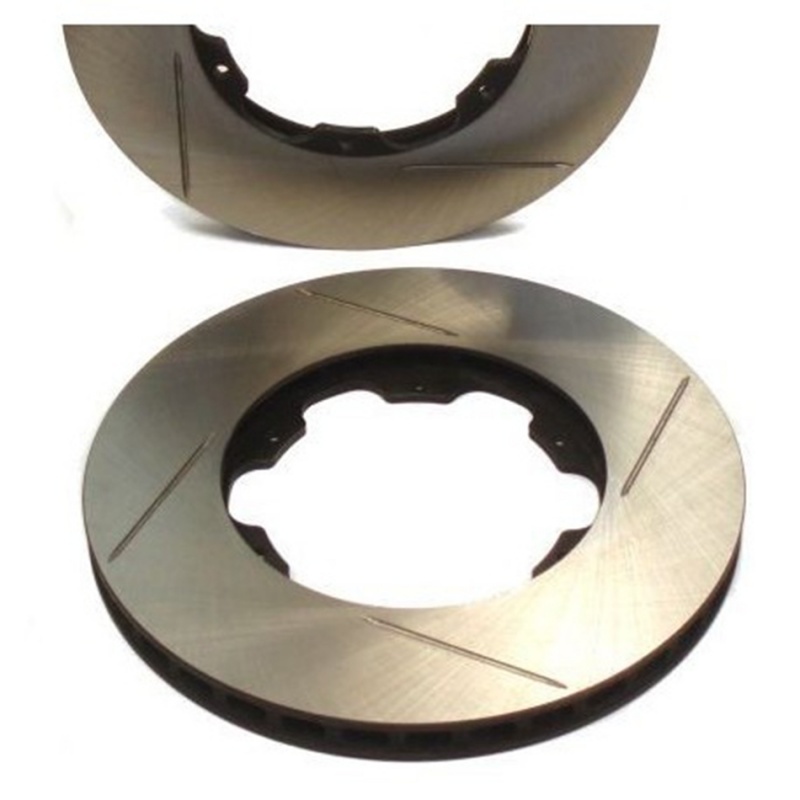

A 267mm x 21mm AP racing brake disc better known as a "forest" disc which is FIA historic legal to be used with the "forest" calliper and also can be used with the four pot CP4567/8/9 calliper.
Dimensions: Outside Diameter – 267mm, Thickness – 21mm, Eye Diameter – 155mm, Inside Flange Diameter - 125.8mm, Mtg Flange Thickness - 5.6mm, P.C.D Diameter - 139.7mm
Number of Vanes 36
Weight - 4.4kg
6 Mounting Holes
Mounting Hole Diameter - 6.4mm
Air Gap - 9.3mm
