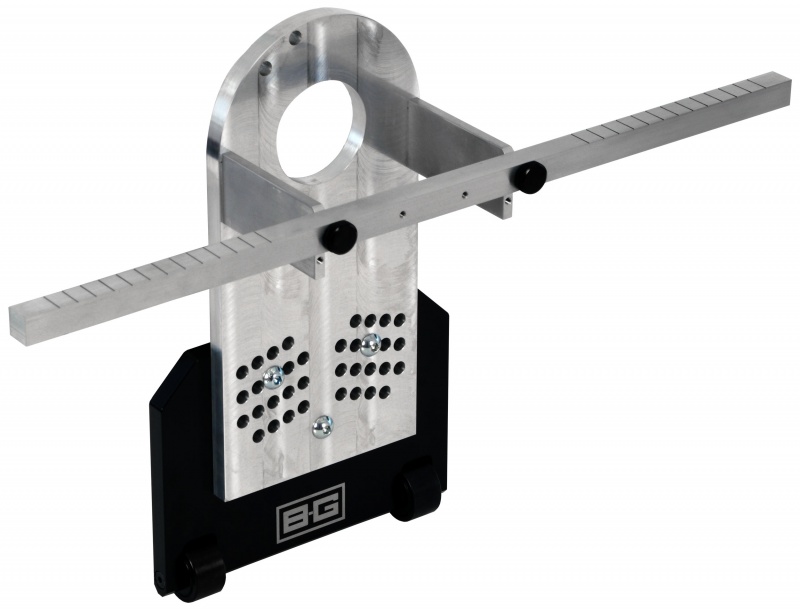

Designed, developed and precision manufactured in the UK to the highest quality from 6061 T6 Aluminium, the B-G Racing Clubman Hub Stands Kit is the ultimate solution for vehicle set up and alignment. This advanced and proven system replaces the vehicle wheel and tyre set, giving access to carry out a complete suspension and alignment set up without needing to lift the vehicle, and eliminating the need to roll the vehicle on and off scale pads to unload the suspension after adjustments. The changes occur in real time! Set up is faster and more precise than using a wheel and tyre set, with repeatable, accurate measurements instead of ever-changing figures caused by wheel and tyre variations.
Each base features a pair of high load, low resistance roller bearing wheels which allow the Clubman Hub Stands to respond with the vehicle suspension as changes are made. This keeps the suspension bind-free which in turn makes the adjustment process quick and easy, showing the results of your adjustments instantly.
The hub stands are height adjustable to suit different tyre diameters and can be supplied with a variety of multi-drilled plate to suit different vehicle bolt patterns. The interchangeable plates are available in a wide range of configurations including a selection of hubs with centre locking wheels and any custom application.
Each set comes with a set of four aluminium Toe Sticks, precisely CNC machined to be bolted parallel to the hub face for stringing or measuring total toe. The Hub Stands are supplied with a set of eight 105mm Toe Stub Extensions designed to offset the Toe Stick away from the hub to clear large brake calipers and grease caps. A set of four stainless steel safety plates are also included in the kit which are used to prevent the vehicle from rolling off the scale pads.
- Suitable for vehicles up to a weight of 1400kg (3086lbs).
- Height adjustable
- Manufactured in the UK to the highest quality from 6061 T6 Aluminium
