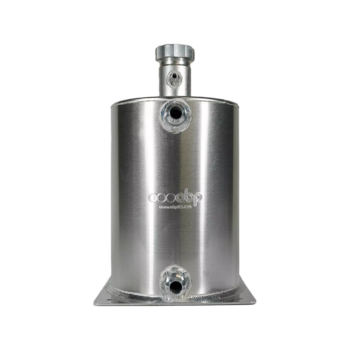

OBP Alloy Dry Sump Tank
Price range: £182.45 through £215.62
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
OBP Alloy Dry Sump Tank:
- Designed for Dry Sump Lubrication Systems: Essential for race and high-performance engines.
- Internal Baffling: Prevents oil slosh and surge during aggressive driving.
- 2mm Aluminium Construction: Lightweight yet strong, making it ideal for motorsport applications.
- Leak-Free JIC Fittings: Features JIC 12 male inlet and outlet for secure, high-flow oil connections.
- 50mm Screw Cap Filler Neck: Allows for easy oil top-up and quick access.
- Pressure Tested: Ensures leak-free reliability under race conditions.
OBP Alloy Dry Sump Tank
The OBP Alloy Dry Sump Tank is an essential component of a dry sump oil system, commonly used in motorsport and high-performance engines to maintain consistent oil pressure, especially under extreme conditions such as hard cornering, acceleration, and braking. Unlike traditional wet sump systems, a dry sump setup stores oil externally in a dedicated tank, which eliminates the risk of oil starvation and enhances overall engine reliability.
Our dry sump tanks are designed to be versatile, making them suitable for a wide range of applications. Each tank is handcrafted in the UK using high-grade 2mm aluminium. The design includes an internal baffle system to reduce oil surge, a 50mm screw cap filler neck, and JIC male fittings for leak-free, high-flow connections. Every unit undergoes pressure testing to ensure durability and reliable performance even in the harshest racing environments.
What Is a Dry Sump Tank Used For?
A dry sump tank is used to store and manage the engine’s oil outside of the crankcase. It functions as part of a dry sump lubrication system, allowing scavenger pumps to collect oil from the engine and return it to the tank. This system prevents oil starvation during high-G manoeuvres, reduces engine height for better centre of gravity, and increases oil capacity, making it ideal for racing, drifting, rallying, and high-performance road cars.
Key Features of the OBP Alloy Dry Sump Tank include:
Designed for Dry Sump Lubrication Systems: Essential for race and high-performance engines.
Internal Baffling: Prevents oil slosh and surge during aggressive driving.
2mm Aluminium Construction: Lightweight yet strong, making it ideal for motorsport applications.
Leak-Free JIC Fittings: Features JIC 12 male inlet and outlet for secure, high-flow oil connections.
50mm Screw Cap Filler Neck: Allows for easy oil top-up and quick access.
Pressure Tested: Ensures leak-free reliability under race conditions.
Handmade in the UK: Expertly crafted by OBP Motorsport with rigorous quality control.
Available Capacities & Specifications:
1 Gallon Dry Sump Tank
– Dimensions: Height: 210mm | Diameter: 190mm
– Inlet/Outlet: JIC 12 Male
– Breather: 10mm Push-On
– Filler Neck: 50mm Screw Cap
1.5 Gallon Dry Sump Tank
– Dimensions: Height: 270mm | Diameter: 190mm
– Inlet/Outlet: JIC 12 Male
– Breather: 10mm Push-On
– Filler Neck: 50mm Screw Cap
2 Gallon Dry Sump Tank
– Dimensions: Height: 356mm | Diameter: 190mm
– Inlet/Outlet: JIC 12 Male
– Breather: 10mm Push-On
– Filler Neck: 50mm Screw Cap
2.5 Gallon Dry Sump Tank
– Dimensions: Height: 410mm | Diameter: 190mm
– Inlet/Outlet: JIC 12 Male
– Breather: 10mm Push-On
– Filler Neck: 50mm Screw Cap
3 Gallon Dry Sump Tank
– Dimensions: Height: 468mm | Diameter: 190mm
– Inlet/Outlet: JIC 12 Male
– Breather: 10mm Push-On
– Filler Neck: 50mm Screw Cap
Whether you are building a competitive race car, installing a custom dry sump system, or upgrading your existing setup, the OBP Alloy Dry Sump Tank is a reliable and race-proven solution trusted by professionals worldwide.
| Weight | 0.97 kg |
|---|---|
| Dimensions | 3.8 × 2.6 × 2.6 cm |
| Option | 1 Gallon, 1.5 Gallon, 2 Gallon, 2.5 Gallon, 3 Gallon |
| Colour | Black, Silver |
| Brand | OBP |
