R-Tech 12V Micro Heater Package

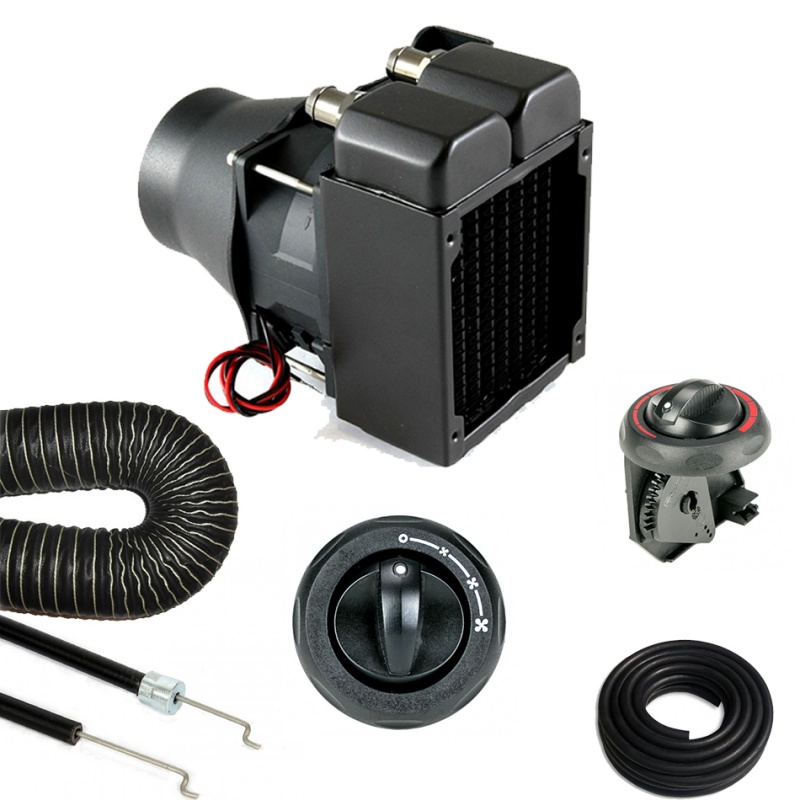

The R-Tech 12V Micro Heater Package Contains:

1 x Rallynuts 2.2Kw 12v Micro Heater

Specification:

• Weight 0.59kg

• 12v, 0.7 amps (continuous)

• Electrical consumption 8.4 w

• Typical airflow 80cfm

• Air hose size 60-63mm (2.5")

• 13mm (1/2”) hose connections

• Copper/Brass heater core construction

1 x Rotary Heater Control knob - Bowden Operated

A high-quality mechanical Heater Control Knob to operate Bowden controlled heater valves. This control knob has 270° of rotation and has 3 hole positions to offer 30 - 40mm of cable travel.Please note that a push to close valve is required so that the dial will match with the indication on the fascia of the control k

1 x 4 Position Fan Switch with Knob

This 4 position fan switch can be used to control blowers and fans that have a built in resistor pack.
This switch can handle up to 28v and 20a of current draw.

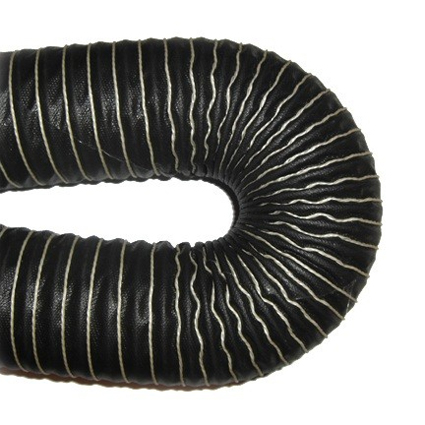

1 x Rallynuts 2.5" Neoprene Ducting Hose

• Inside Diameter: 2.5"/60-63.5mm

• Outside Diameter: 65.6mm

• Min Bend Radius: 31mm

• Weight: 300g/m

• Temp Range:-50 to 150°c

1 x Type A Bowden Cable - 0.5m
A high-quality Bowden Cable with a solid core to allow push and pull control. The Type A Bowden Cable has stepped ends and therefore is compatible with our Rotary Control Knobs, a select number of our water valves, air junctions and Y connectors with internal flap.

1 x Rallynuts 13mm EPDM Coolant Hose (1M)

• Inside Diameter: 13mm (1/2")

• Outside Diameter: 21mm

• Min Bend Radius: 130mm

• Weight: 300g/m

• Temp Range:-30°c to 120°c

• 130 PSI (9 BAR) Working pressure

• 390 PSI (27 BAR) Minimum burst pressure

• Conforms to SAE 20R3 C (212) standards
