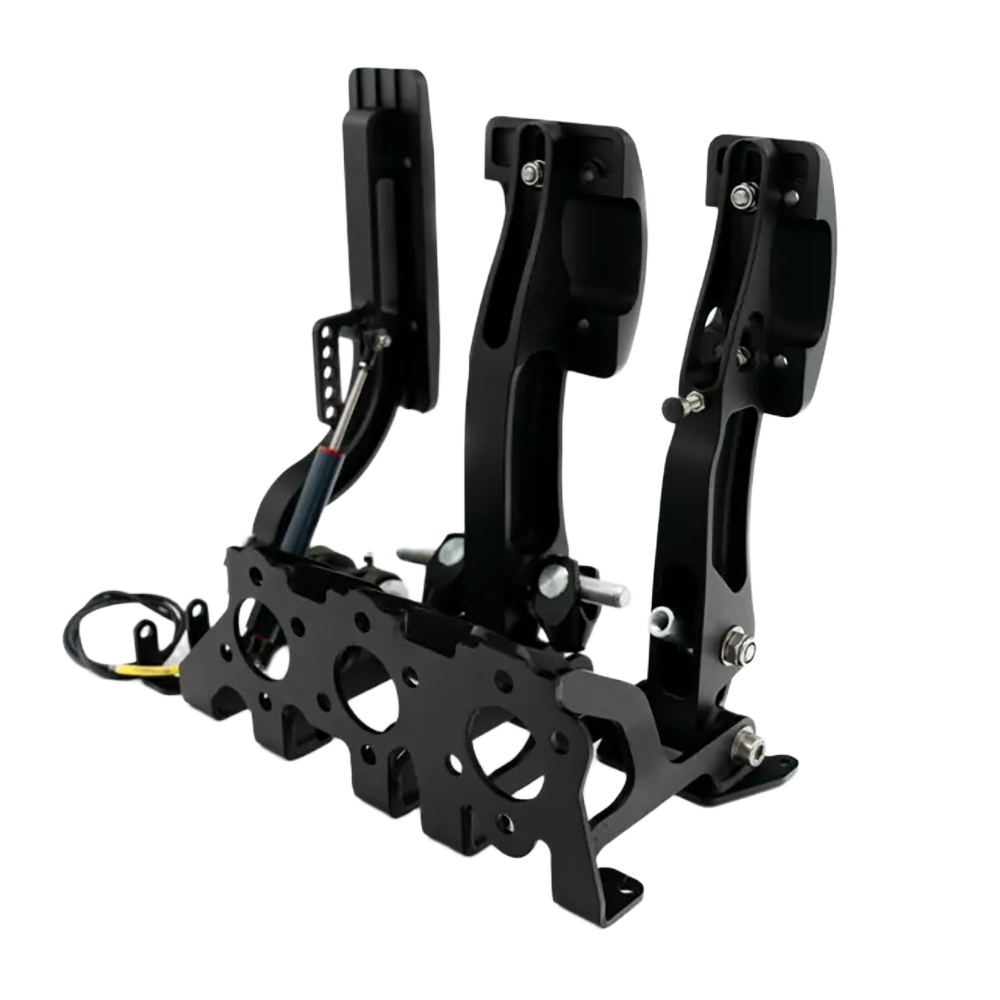

OBP Racing Series Floor Mounted Bulkhead Fit Pedal System

OBP Racing Series Floor Mounted Bulkhead Fit Pedal System

The cutting-edge ‘Racing Series’ from OBP is a state-of-the-art pedal system meticulously engineered for motorsport enthusiasts who demand nothing less than peak performance and optimal weight management in their vehicles. As the flagship product in this innovative range, it is designed to significantly enhance braking efficiency while reducing overall mass.

Employing advanced techniques such as topology optimisation and Finite Element Analysis, we have crafted a remarkably efficient design that delivers superior stiffness without any unnecessary weight. This means superior pedal response and enhanced control, giving drivers the confidence they need on the track.

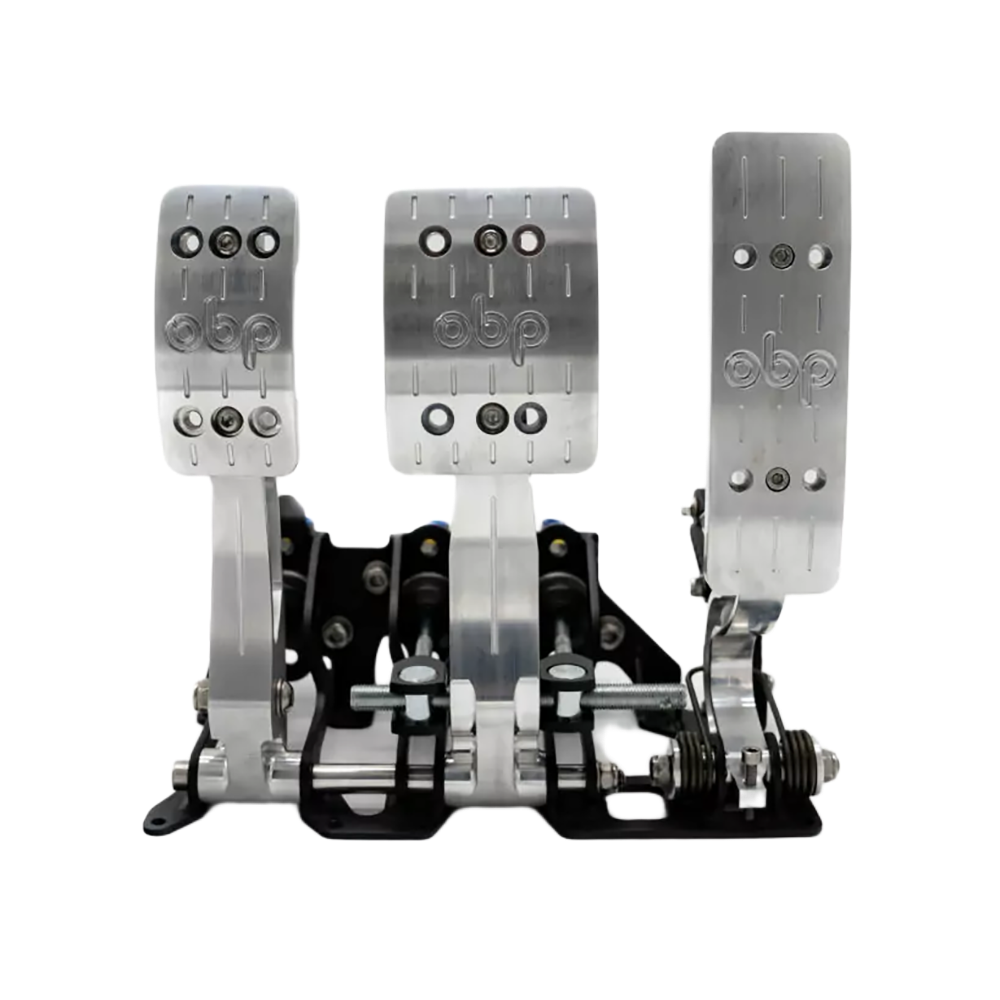

Our exceptionally lightweight dual brake master cylinder bias-controlled pedal boxes are the heart of this system. They have been thoughtfully designed to maximise efficiency in one of the most critical aspects of vehicle performance. Featuring CNC machined pedals, the system incorporates high-quality, oil-impregnated spherical bearings that provide smooth, low-friction operation, thereby raising the bar for pedal box design. The pedal pads, also made from precision CNC machined billet aluminium, can be adjusted across multiple positions, allowing drivers to tailor the pedal ratio and positioning to achieve both optimal performance and comfort.

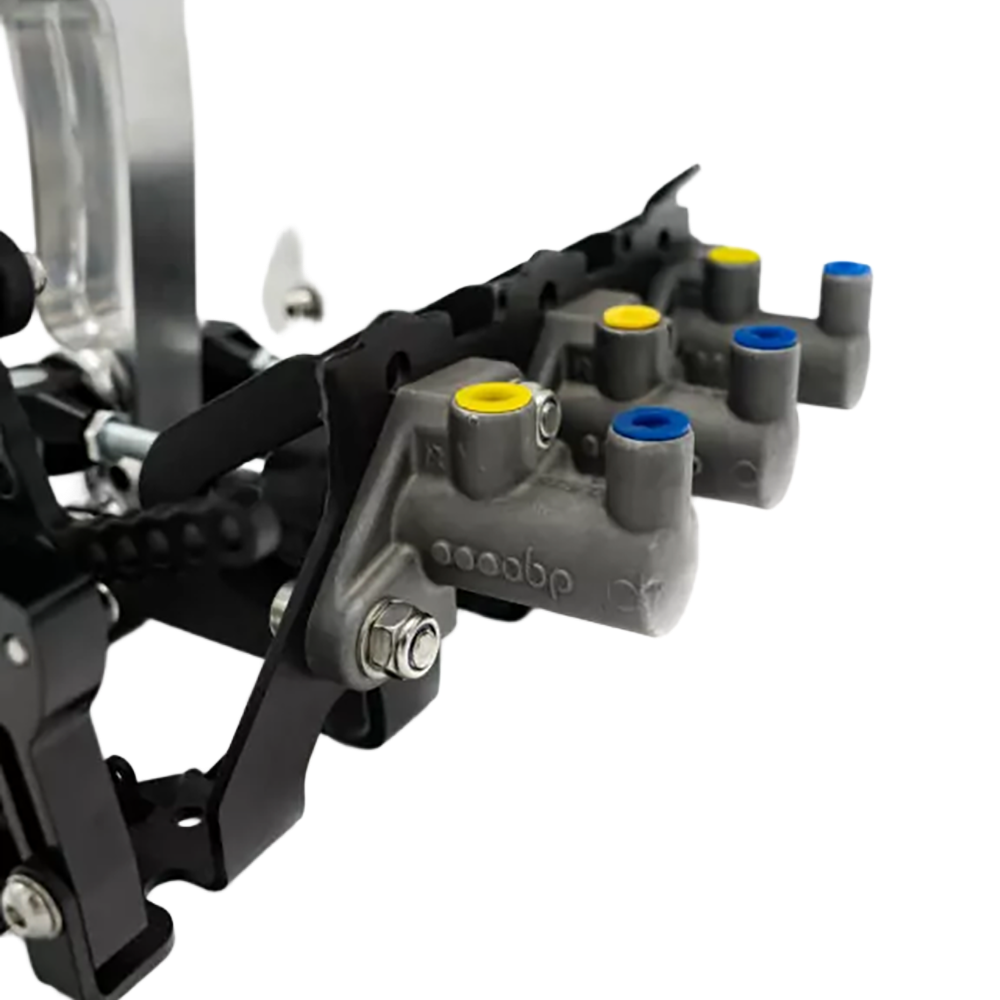

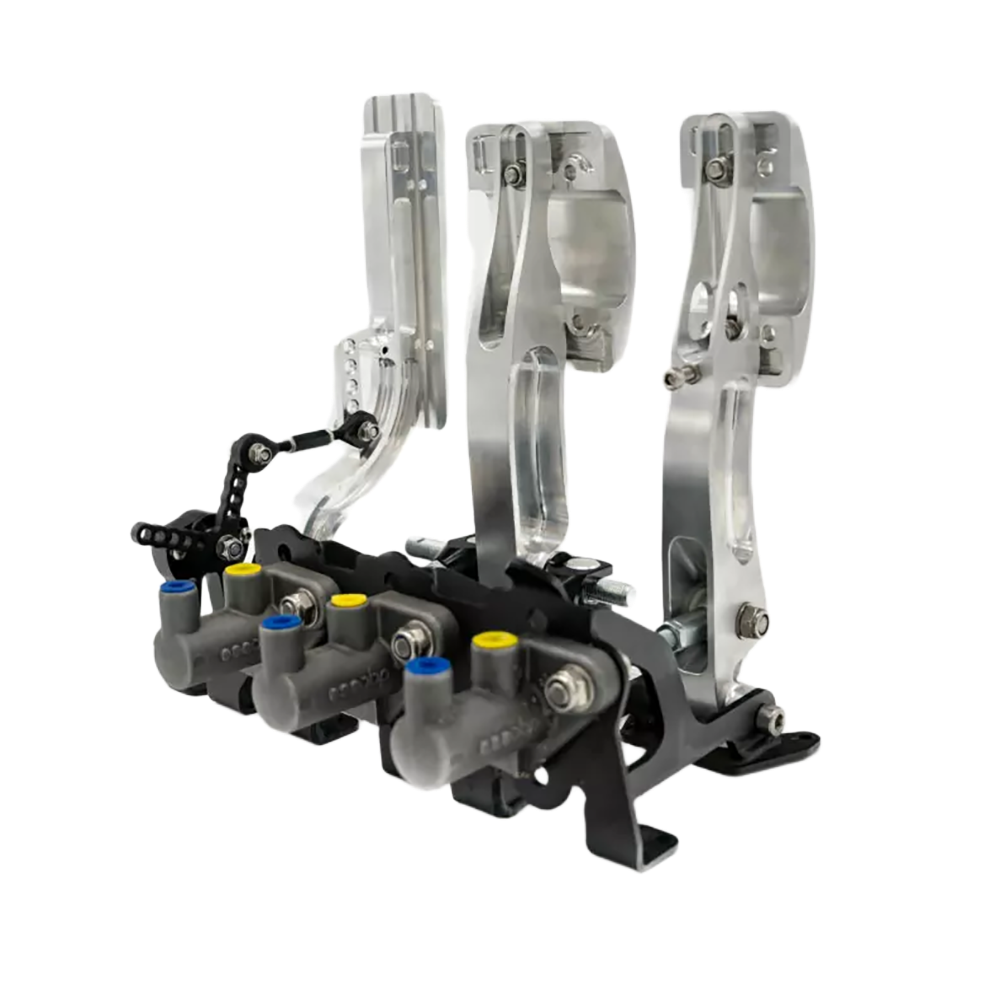

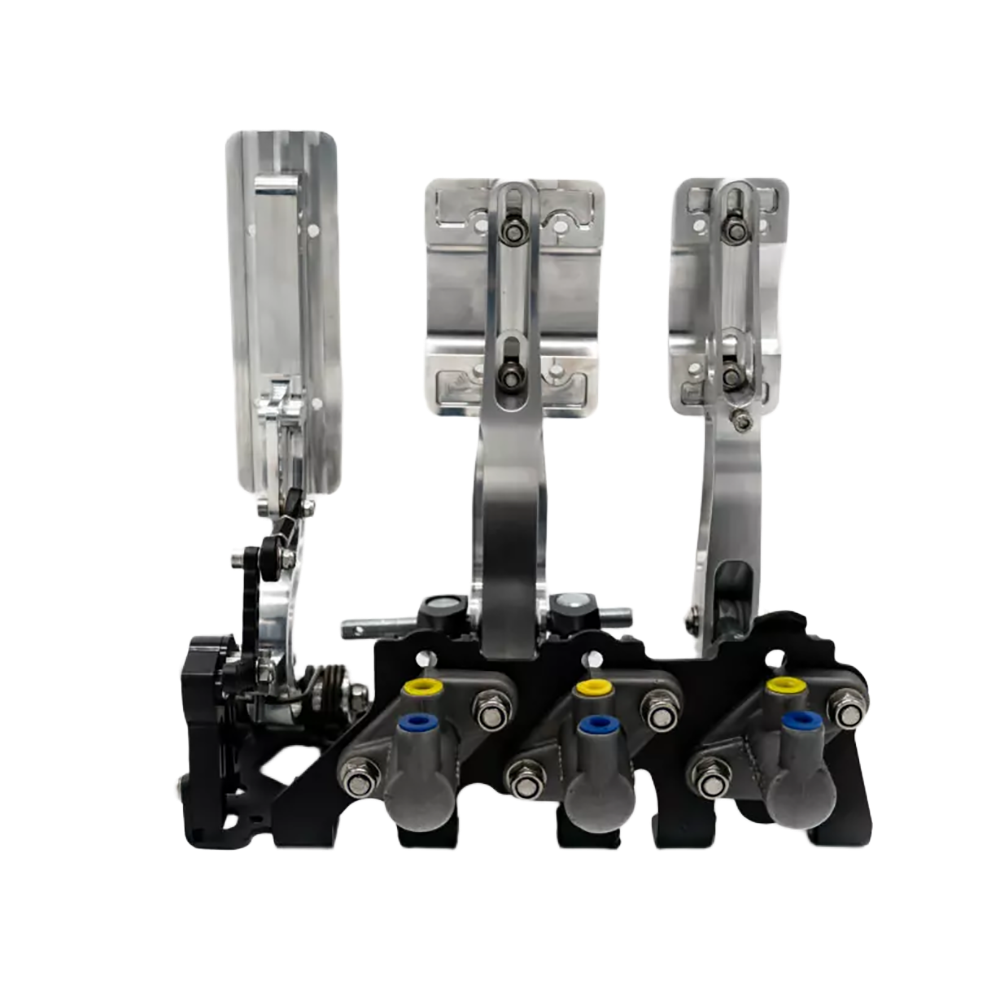

The base box frame is constructed from robust 3mm mild steel, which not only enhances the overall durability of the system but also provides necessary strength. Engineered to fit securely against the bulkhead, this design ensures additional stability and support during intense driving conditions. Additionally, the rear of the frame features three mounting points for brake master cylinders, making it compatible with a wide variety of master cylinders available in the market.

The Accelerator Pedal has been meticulously engineered to enhance driver control and performance, featuring two adjustable throttle stops that allow for precise customisation of the pedal throw to match your unique driving style. This pedal boasts a highly sensitive return spring, which ensures a quick and responsive rebound, providing an intuitive driving experience.

At the rear of the pedal, a standard throttle cable linkage is installed, which offers straightforward compatibility with traditional systems. However, for those who prefer modern technology, the pedal is also Drive By Wire (DBW) compatible. By simply removing the linkage and substituting it with a Linear Potentiometer, you can seamlessly integrate it into advanced electronic systems.

Key Features and Details of OBP Racing Series Floor Mounted Bulkhead Fit Pedal System include:

Universal Fit: Designed to accommodate a wide variety of vehicles, ensuring easy installation regardless of the make or model.

Aircraft Grade T6061 Aluminium Construction: Crafted from premium-grade aluminium, this pedal system is lightweight yet incredibly durable, providing maximum weight savings without compromising strength.

Multiple Pedal Pad Adjustments: Tailor your driving experience with various adjustment options for the pedal pad, allowing for optimal comfort and ease of use.

Versatile Compatibility: Works seamlessly with both vertical and offset flange master cylinders, broadening its applicability.

Adjustable Pedal Ratios: Fine-tune the pedal ratios to suit your personal driving style, available options being 4.9:1 and 5.24:1.

Customisable Accelerator Return: Modify the return action of the throttle for a more personalised feel during acceleration.

Flexible Actuation Options: The throttle pedal is versatile, functioning effectively with either a linear potentiometer or traditional cable actuation (sold separately).

Expertly Manufactured in the UK: Created by our skilled engineers, ensuring high quality and precision engineering.

Bulkhead Fitment: Designed for easy integration into bulkhead applications.

Weight: A sleek and efficient 2.7 kg, striking the perfect balance between lightweight design and robust construction.

Bias Bar Included: This accessory enhances the pedal system’s performance and functionality.

This Accelerator Pedal is designed to elevate your driving experience, combining cutting-edge technology with user-friendly features to provide optimal control and responsiveness on the road or track.

Experience the ultimate in performance and customisability with the OBP Racing Series Floor Mounted Bulkhead Fit Pedal System. Elevate your driving experience to new heights!
