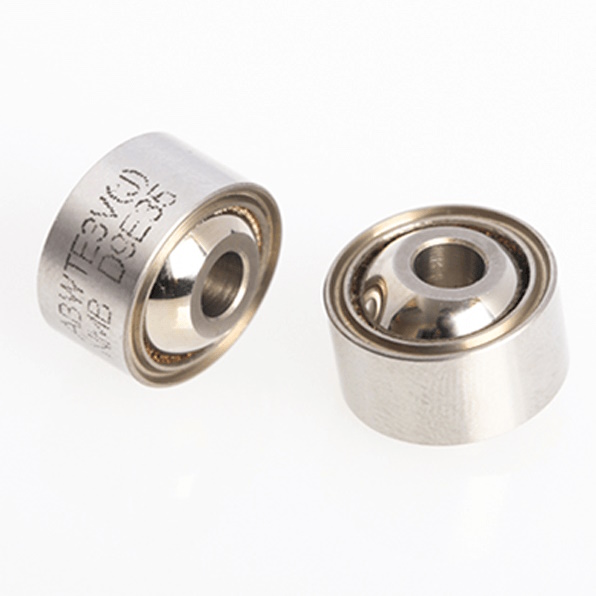

NMB MBWT22 Spherical Plain Bearing Wide Series 22mm Bore 41mm OD 22mm BW 19mm HW

NMB MBWT22 Spherical Plain Bearing Wide Series 22mm Bore 41mm OD 22mm BW 19mm HW
Price:  £57.25(Exc. 20% VAT)(£68.70 Inc. VAT)
+

Part Number:  MBWT22
Bore Size:  22mm
Outer Diameter:  41mm
Ball Width:  22mm
Housing Width:  19mm
Retention Method:  Circlip
Lubrication Type:  PTFE (Polytetrafluoroethylene) lined

NMB


Our NMB MBWT Series Spherical Plain Bearings are a high performance, stainless steel, extra wide bearing.

Where is this used?
The car applications that MBWT22 Spherical Plain Bearings are directly used for:

– Formula 3
– Hill-Climb/Time Trial
– F2/GP3
– Formula Ford

Please note : These are not suitable for Formula 1, LMP, WRC and Touring car applications – see “ABTE-Type” range of bearings for these applications.

Suspension:
It can be used for other classes of Race cars to improve suspension and ultimately, track time.

Why MBWT22?
It’s adaptable construction (available in imperial series) with a special reinforced enriched PTFE fabric liner sliding surface enables higher load capabilities, longer life and lower friction under load than comparably sized bearings. The ultimate metric extra wide series Spherical Plain Bearing for Motorsport and Racing applications.

Sizes:
22mm Bore, 41mm OD, 22mm BW, 19mm HW

Retention Method:
Circlip / Snap Ring

Materials:
Race – 440C Stainless Steel
Ball – 410 Stainless Steel

Type of Lubrication:
PTFE (Polytetrafluoroethylene) lined

This series is available in 1/16″ incremental bore sizes from 0.1900″ to 1.000″ and is also available with a staking groove (suffix V).
