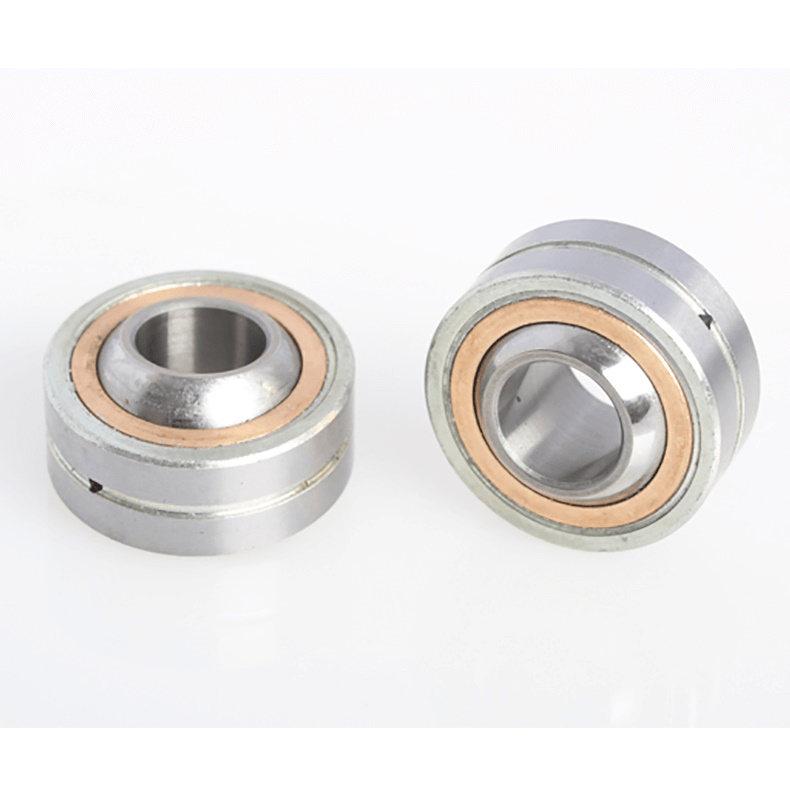

Fluro GLXSW20 Spherical Plain Bearing 20mm Bore 46mm OD 25mm BW 18mm HW

Fluro GLXSW20 Spherical Plain Bearing 20mm Bore 46mm OD 25mm BW 18mm HW
  Zoom
Price:  £30.31(Exc. 20% VAT)(£36.37 Inc. VAT)
+

Part Number:  GLXSW20
Bore Size  20mm
Outer Diameter  46mm
Ball Width  25mm
Housing Width  18mm
Retention Method  Circlip
Lubrication Type  PTFE (Polytetrafluoroethylene) lined


Our Fluro GLXSW Series Spherical Plain Bearings are a heavy duty, carbon steel bearing.

Where is this used?
The car applications that GLXSW20 Spherical Plain Bearings are directly used for:

– Shock absorbers
– Wishbone
– Toelinks

Suspension
It can be used for other classes of Race cars to improve suspension and ultimately, track time.

Why GLXSW20?
For use at higher dynamic pressure and tension loads.

Sizes:
20mm Bore, 46mm OD, 25mm BW, 18mm HW

Retention Method
Circlip // Snap ring

Materials:
Body – Carbon Steel
Insert – Zinc Plated Carbon Steel
Ball – Carbon Steel

Type of Lubrication:
PTFE (Polytetrafluoroethylene) lined
