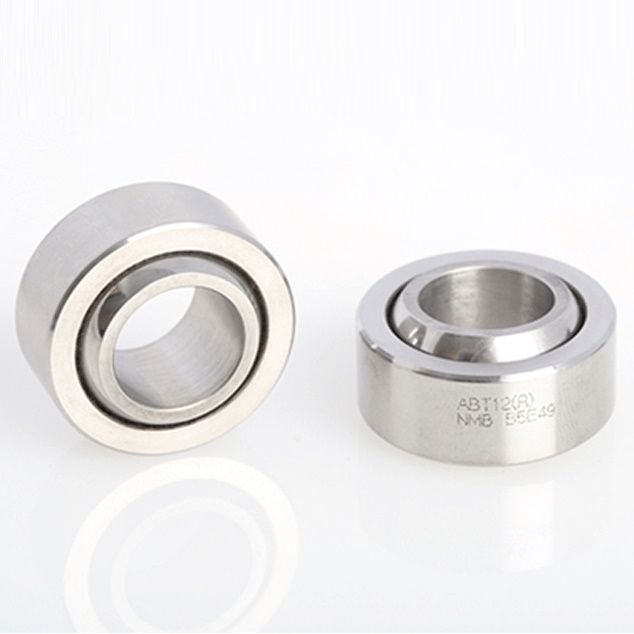

NMB ABT10V Spherical Plain Bearing Narrow Series .625 Bore 1.1875 OD .625 BW .500 HW

NMB ABT10V Spherical Plain Bearing Narrow Series .625 Bore 1.1875 OD .625 BW .500 HW
  Zoom
Price:  £26.54(Exc. 20% VAT)(£31.85 Inc. VAT)
+

Part Number:  ABT-10V
Bore Size  .625 (5/8")
Outer Diameter  1.1875 (1.3/16")
Ball Width  .625 (5/8″)
Housing Width  .500 (1/2")
Retention Method  Staked
Lubrication Type  PTFE (Polytetrafluoroethylene) lined

NMB


Our NMB ABT(V) Series Spherical Plain Bearings are a high performance, stainless steel, narrow bearing.

Where is this used?
The car applications that ABT10V Spherical Plain Bearings are directly used for:

– Formula 3
– Hill-Climb/Time Trial
– F2/GP3
– Formula Ford

Please note : These are not suitable for Formula 1, LMP, WRC and Touring car applications – see “ABTE-Type” range of bearings for these applications.

Suspension:
It can be used for other classes of Race cars to improve suspension and ultimately, track time.

Why ABT10V?
It’s adaptable construction (available in metric series) with a special reinforced enriched PTFE fabric liner sliding surface enables higher load capabilities, longer life and lower friction under load than comparably sized bearings. The ultimate imperial narrow series Spherical Plain Bearing for Motorsport and Racing applications.

Sizes:
.625 (5/8″) Bore, 1.1875 (1.3/16″) OD, .625 (5/8″) BW, .500 (1/2″) HW

Retention Method:
Staked

Materials:
Race – 440C Stainless Steel
Ball – 410 Stainless Steel

Type of Lubrication:
PTFE (Polytetrafluoroethylene) lined

This series is available in 1/16″ incremental bore sizes from 0.1900″ to 1.000″ and is also available with a staking groove (suffix V).
